DM3

Item ID: 11

Yamaha DM3 Technical Specifications

Variants

• DM3-D (Dante-enabled)
• DM3 Standard

Overview

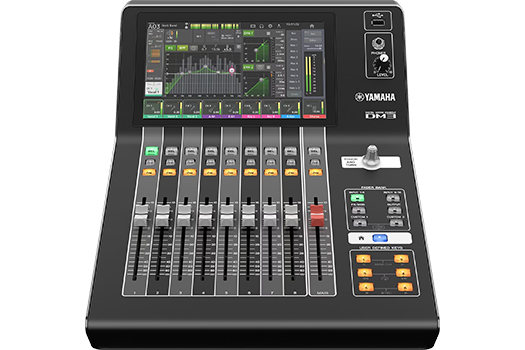

Both variants are ultra-compact 22-channel digital mixing consoles featuring: - 16 mono input channels + 1 stereo input channel + 2 FX returns - 6 mix buses, 1 stereo bus, 2 FX buses, 2 matrices (with input-to-matrix support) - 9″ multi-touch screen, 8+1 motorized fader configuration, and a “Touch and Turn” rotary encoder

I/O & Connectivity

• Analog Inputs: 16 Mic/Line (12 XLR + 4 XLR/TRS combo)
• Analog Outputs: 8 XLR
• Dante:
• Available on DM3-D (2 etherCON ports, Primary/Secondary)
• Not available on DM3 Standard
• Network (LAN): 1 × RJ-45 port
• USB Connections: USB-B (USB 2.0 host) + USB-A (device)
• Headphones: 1 × TRS Phones jack
• Power Input: 1 × XLR 4-pin DC in (24 V/2.5 A, PA-L500 adapter)

Recording & Playback

• 18-track recording/playback via USB interface (PC/Mac)
• 2-track recording/playback via USB flash drive or SSD
• Supports 48 kHz and 96 kHz sample rates

Audio Performance

• Signal delay: < 1.3 ms from channel input to omni output at 96 kHz
• Frequency response: +0.5 / –1.0 dB (20 Hz–20 kHz)
• THD: < 0.01% (20 Hz–20 kHz, +4 dBu into 10 kΩ)
• Equivalent input noise: –126 dBu (typical) at max gain
• Residual output noise: –84 dBu with stereo main off
• Dynamic range: 110 dB (DA Converter), 106 dB input to omni out
• Crosstalk: –100 dB at 1 kHz (adjacent channels)

Dimensions & Physical

• Dimensions: 320 mm (W) × 140 mm (H) × 455 mm (D)
  (12.6″ × 5.6″ × 18.0″)
• Net weight: 6.5 kg (14.3 lb)
• Power consumption: 43 W
• Temperature range: Operating 0–40 °C; Storage –20 to 60 °C
• Included accessories: Owner’s Manual, Power Adapter, Download Information
• Optional accessory: RK-DM3 rack kit

Summary: DM3-D vs DM3 Standard

• Both models share the same I/O, DSP, user interface, performance, dimensions, and features.
• DM3-D includes Dante network audio capability (for digital audio networking and expansion).
• DM3 Standard does not include Dante.
